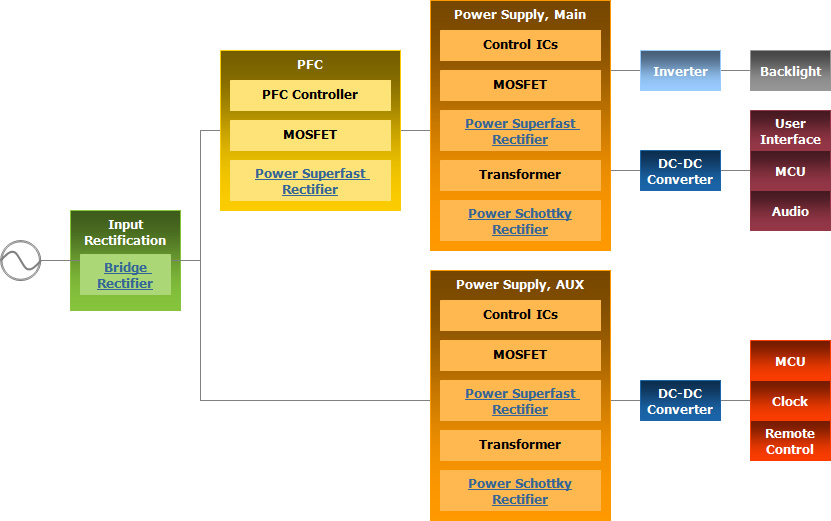

Flat panel display TVs are becoming increasingly slim and sleek. Design challenge of compact, small form sized power supply is critical. Won-Top Electronics offers a wide range of discrete semiconductors for your designs of low standby power consumption and high switching efficiency.

Flat Panel Display TV

Bridge Rectifier, Input Rectification

Part No.

Product Type

Package Group

Package

Configuration

IF(AV)

(A)

VRRM

(V)

VF @ IF

(V)

IR @ VR

(µA)

IFSM

(A)

GBJ15J

Bridge Rectifier

Single In-Line

GBJ-6

Bridge

15

600

1.05 @ 7.5A

10 @ 600V

240

GBPC1506

Bridge Rectifier

Square

GBPC

Bridge

15

600

1.1 @ 7.5A

10 @ 600V

300

GBJ15M

Bridge Rectifier

Single In-Line

GBJ-6

Bridge

15

1000

1.05 @ 7.5A

10 @ 1000V

240

GBPC1510

Bridge Rectifier

Square

GBPC

Bridge

15

1000

1.1 @ 7.5A

10 @ 1000V

300

GBJ25J

Bridge Rectifier

Single In-Line

GBJ-6

Bridge

25

600

1.05 @ 12.5A

10 @ 600V

350

GBPC2506

Bridge Rectifier

Square

GBPC

Bridge

25

600

1.1 @ 12.5A

10 @ 600V

300

GBJ25M

Bridge Rectifier

Single In-Line

GBJ-6

Bridge

25

1000

1.05 @ 12.5A

10 @ 1000V

350

GBPC2510

Bridge Rectifier

Square

GBPC

Bridge

25

1000

1.1 @ 12.5A

10 @ 1000V

300

Power Superfast Rectifier, PFC

Part No.

Product Type

Package Group

Package

Configuration

IF(AV)

(A)

VRRM

(V)

VF @ IF

(V)

IR @ VR

(µA)

Trr

(ns)

IFSM

(A)

MUR860

Superfast

Powerpack

TO-220A

Single

8

600

1.5 @ 8.0A

10 @ 600V

28

125

MURF860

Superfast

Powerpack

ITO-220A

Single

8

600

1.5 @ 8.0A

10 @ 600V

28

125

MUR1560

Superfast

Powerpack

TO-220A

Single

15

600

1.5 @ 15A

10 @ 600V

50

200

MURF1560

Superfast

Powerpack

ITO-220A

Single

15

600

1.5 @ 15A

10 @ 600V

50

200

RURG1560

Superfast

Powerpack

TO-247AC

Single

15

600

1.5 @ 15A

10 @ 600V

50

200

MURB1660

Superfast

SMD

D2PAK

Single

16

600

1.5 @ 16A

10 @ 600V

50

250

MUR1660

Superfast

Powerpack

TO-220A

Single

16

600

1.5 @ 16A

10 @ 600V

50

250

MURF1660

Superfast

Powerpack

ITO-220A

Single

16

600

1.5 @ 16A

10 @ 600V

50

250

MURB1660CT

Superfast

SMD

D2PAK

Common Cathode

16

600

1.7 @ 8.0A

10 @ 600V

50

200

U20D60C

Superfast

Powerpack

TO-3P

Common Cathode

20

600

1.7 @ 10A

10 @ 600V

50

200

MURB3060

Superfast

SMD

D2PAK

Single

30

600

1.5 @ 30A

250 @ 600V

50

325

MUR3060

Superfast

Powerpack

TO-220A

Single

30

600

1.5 @ 30A

250 @ 600V

50

325

MURF3060

Superfast

Powerpack

ITO-220A

Single

30

600

1.5 @ 30A

250 @ 600V

50

325

RURG3060

Superfast

Powerpack

TO-247AC

Single

30

600

1.5 @ 30A

250 @ 600V

50

325

MURB3060CT

Superfast

SMD

D2PAK

Common Cathode

30

600

1.7 @ 15A

10 @ 600V

50

200

MUR3060CT

Superfast

Powerpack

TO-220

Common Cathode

30

600

1.7 @ 15A

10 @ 600V

50

200

MURF3060CT

Superfast

Powerpack

ITO-220

Common Cathode

30

600

1.7 @ 15A

10 @ 600V

50

200

U30D60C

Superfast

Powerpack

TO-3P

Common Cathode

30

600

1.7 @ 15A

10 @ 600V

50

300

Power Superfast Rectifier, Power Supply Main/AUX

Part No.

Product Type

Package Group

Package

Configuration

IF(AV)

(A)

VRRM

(V)

VF @ IF

(V)

IR @ VR

(µA)

Trr

(ns)

IFSM

(A)

MURHB820

Superfast

SMD

D2PAK

Single

8

200

0.95 @ 8.0A

10 @ 200V

35

125

ER802

Superfast

Powerpack

TO-220A

Single

8

200

0.95 @ 8.0A

10 @ 200V

35

125

ER802F

Superfast

Powerpack

ITO-220A

Single

8

200

0.95 @ 8.0A

10 @ 200V

35

125

ER1002

Superfast

Powerpack

TO-220A

Single

10

200

0.95 @ 10A

10 @ 200V

35

150

ER1002F

Superfast

Powerpack

ITO-220A

Single

10

200

0.95 @ 10A

10 @ 200V

35

150

MURB1020CT

Superfast

SMD

D2PAK

Common Cathode

10

200

0.95 @ 5.0A

10 @ 200V

35

150

ER1002CT

Superfast

Powerpack

TO-220

Common Cathode

10

200

0.95 @ 5.0A

10 @ 200V

35

150

ER1002FCT

Superfast

Powerpack

ITO-220

Common Cathode

10

200

0.95 @ 5.0A

10 @ 200V

35

150

RURG1520

Superfast

Powerpack

TO-247AC

Single

15

200

0.975 @ 15A

10 @ 200V

35

200

MUR1520

Superfast

Powerpack

TO-220A

Single

15

200

1.05 @ 15A

10 @ 200V

35

200

MURF1520

Superfast

Powerpack

ITO-220A

Single

15

200

1.05 @ 15A

10 @ 200V

35

200

MURB1620CT

Superfast

SMD

D2PAK

Common Cathode

16

200

0.95 @ 8.0A

10 @ 200V

35

200

ER1602FCT

Superfast

Powerpack

ITO-220

Common Cathode

16

200

0.95 @ 8.0A

10 @ 200V

35

200

MURB1620

Superfast

SMD

D2PAK

Single

16

200

0.975 @ 16A

10 @ 200V

35

250

MUR1620

Superfast

Powerpack

TO-220A

Single

16

200

0.975 @ 16A

10 @ 200V

35

250

MURF1620

Superfast

Powerpack

ITO-220A

Single

16

200

0.975 @ 16A

10 @ 200V

35

250

U20D20C

Superfast

Powerpack

TO-3P

Common Cathode

20

200

0.975 @ 10A

10 @ 200V

35

200

Power Schottky Rectifier, Power Supply Main/AUX

Part No.

Product Type

Package Group

Package

Configuration

IF(AV)

(A)

VRRM

(V)

VF @ IF

(V)

IR @ VR

(mA)

IFSM

(A)

SB10200D

Schottky

SMD

D2PAK

Single

10

200

0.92 @ 10A

0.2 @ 200V

150

SB10200F

Schottky

Powerpack

ITO-220A

Single

10

200

0.92 @ 10A

0.2 @ 200V

150

SB16200D

Schottky

SMD

D2PAK

Single

16

200

0.92 @ 16A

0.2 @ 200V

150

SB16200DC

Schottky

SMD

D2PAK

Common Cathode

16

200

0.92 @ 8.0A

0.2 @ 200V

150

SB16200F

Schottky

Powerpack

ITO-220A

Single

16

200

0.92 @ 16A

0.2 @ 200V

150

SB16200FCT

Schottky

Powerpack

ITO-220

Common Cathode

16

200

0.92 @ 8.0A

0.2 @ 200V

150

SB20200DC

Schottky

SMD

D2PAK

Common Cathode

20

200

0.92 @ 10A

0.2 @ 200V

150

S20D200C

Schottky

Powerpack

TO-3P

Common Cathode

20

200

0.92 @ 10A

0.2 @ 200V

200

SB20200FCT

Schottky

Powerpack

ITO-220

Common Cathode

20

200

0.92 @ 10A

0.2 @ 200V

150
