The transition of incandescent light bulb to superior energy-saving LED Lamps is becoming ubiquitous. Designers are constantly facing challenges of simplifying design complexity while increasing energy efficiency at lowest possible cost. Won-Top Electronics delivers a wide range of dedicated discrete components for isolated or non-isolated topologies, dimming or non-dimming features

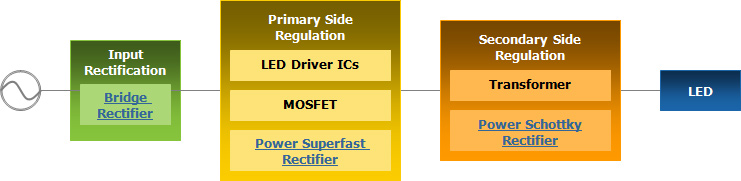

LED Isolated

Bridge Rectifier, Input Rectification

Part No.

Product Type

Package Group

Package

Configuration

IF(AV)

(A)

VRRM

(V)

VF @ IF

(V)

IR @ VR

(µA)

IFSM

(A)

B6S

Bridge Rectifier

SMD

MB-S

Bridge

0.8

600

1.0 @ 0.4A

5.0 @ 600V

35

LB6S

Bridge Rectifier

SMD

MBL-S

Bridge

0.8

600

1.0 @ 0.4A

5.0 @ 600V

35

B10S

Bridge Rectifier

SMD

MB-S

Bridge

0.8

1000

1.0 @ 0.4A

5.0 @ 1000V

35

LB10S

Bridge Rectifier

SMD

MBL-S

Bridge

0.8

1000

1.0 @ 0.4A

5.0 @ 1000V

35

ABS6

Bridge Rectifier

SMD

TB-S Flat

Bridge

1

600

1.1 @ 1.0A

5.0 @ 600V

30

DF06S

Bridge Rectifier

SMD

DF-S

Bridge

1

600

1.1 @ 1.0A

5.0 @ 600V

50

TB6S

Bridge Rectifier

SMD

TB-S

Bridge

1

600

1.1 @ 1.0A

5.0 @ 600V

30

DF06

Bridge Rectifier

Dual In-Line

DIL

Bridge

1

600

1.1 @ 1.0A

5.0 @ 600V

50

ABS10

Bridge Rectifier

SMD

TB-S Flat

Bridge

1

1000

1.1 @ 1.0A

5.0 @ 1000V

30

DF10S

Bridge Rectifier

SMD

DF-S

Bridge

1

1000

1.1 @ 1.0A

5.0 @ 1000V

50

TB10S

Bridge Rectifier

SMD

TB-S

Bridge

1

1000

1.1 @ 1.0A

5.0 @ 1000V

30

DF10

Bridge Rectifier

Dual In-Line

DIL

Bridge

1

1000

1.1 @ 1.0A

5.0 @ 1000V

50

DF156S

Bridge Rectifier

SMD

DF-S

Bridge

1.5

600

1.1 @ 1.5A

5.0 @ 600V

50

DF156

Bridge Rectifier

Dual In-Line

DIL

Bridge

1.5

600

1.1 @ 1.5A

5.0 @ 600V

50

DF1510S

Bridge Rectifier

SMD

DF-S

Bridge

1.5

1000

1.1 @ 1.5A

5.0 @ 1000V

50

DF1510

Bridge Rectifier

Dual In-Line

DIL

Bridge

1.5

1000

1.1 @ 1.5A

5.0 @ 1000V

50

Power Superfast Rectifier, Primary Side Regulation

Part No.

Product Type

Package Group

Package

Configuration

IF(AV)

(A)

VRRM

(V)

VF @ IF

(V)

IR @ VR

(µA)

Trr

(ns)

IFSM

(A)

MURA160

Superfast

SMD

SMA

Single

1

600

1.25 @ 1.0A

5.0 @ 600V

50

30

MURS160

Superfast

SMD

SMB

Single

1

600

1.25 @ 1.0A

5.0 @ 600V

50

30

ER1J

Superfast

SMD

SMB

Single

1

600

1.7 @ 1.0A

5.0 @ 600V

35

30

ES1J

Superfast

SMD

SMA

Single

1

600

1.7 @ 1.0A

5.0 @ 600V

35

30

ES1006FL

Superfast

SMD

SOD-123FL

Single

1

600

1.7 @ 1.0A

5.0 @ 600V

35

30

ER2J

Superfast

SMD

SMB

Single

2

600

1.7 @ 2.0A

10 @ 600V

35

50

ER2JA

Superfast

SMD

SMA

Single

2

600

1.7 @ 2.0A

5.0 @ 600V

35

50

ER3J

Superfast

SMD

SMC

Single

3

600

1.7 @ 3.0A

10 @ 600V

35

100

Power Schottky Rectifier, Secondary Side Regulation

Part No.

Product Type

Package Group

Package

Configuration

IF(AV)

(A)

VRRM

(V)

VF @ IF

(V)

IR @ VR

(mA)

IFSM

(A)

SS14

Schottky

SMD

SMA

Single

1

40

0.50 @ 1.0A

0.5 @ 40V

30

SS1040FL

Schottky

SMD

SOD-123FL

Single

1

40

0.55 @ 1.0A

0.1 @ 40V

25

SS1040WS

Schottky

SMD

SOD-323

Single

1

40

0.60 @ 1.0A

1.0 @ 40V

25

SS16

Schottky

SMD

SMA

Single

1

60

0.70 @ 1.0A

0.5 @ 60V

30

SS1060FL

Schottky

SMD

SOD-123FL

Single

1

60

0.70 @ 1.0A

0.1 @ 60V

25

S100

Schottky

SMD

SMA

Single

1

100

0.85 @ 1.0A

0.5 @ 100V

30

SS10100FL

Schottky

SMD

SOD-123FL

Single

1

100

0.85 @ 1.0A

0.1 @ 100V

25

SR24

Schottky

SMD

SMA

Single

2

40

0.50 @ 2.0A

0.5 @ 40V

50

SS2040FL

Schottky

SMD

SOD-123FL

Single

2

40

0.55 @ 2.0A

0.1 @ 40V

50

SR26

Schottky

SMD

SMA

Single

2

60

0.70 @ 2.0A

0.5 @ 60V

50

SS2060FL

Schottky

SMD

SOD-123FL

Single

2

60

0.70 @ 2.0A

0.1 @ 60V

50

SR210

Schottky

SMD

SMA

Single

2

100

0.85 @ 2.0A

0.5 @ 100V

50

SS20100FL

Schottky

SMD

SOD-123FL

Single

2

100

0.85 @ 2.0A

0.1 @ 100V

50

SR34

Schottky

SMD

SMB

Single

3

40

0.50 @ 3.0A

0.5 @ 40V

100

SX34

Schottky

SMD

SMA

Single

3

40

0.50 @ 3.0A

0.5 @ 40V

80

SR36

Schottky

SMD

SMB

Single

3

60

0.75 @ 3.0A

0.5 @ 60V

100

SX36

Schottky

SMD

SMA

Single

3

60

0.75 @ 3.0A

0.5 @ 60V

80

SR310

Schottky

SMD

SMB

Single

3

100

0.85 @ 3.0A

0.5 @ 100V

100

SX310

Schottky

SMD

SMA

Single

3

100

0.85 @ 3.0A

0.5 @ 100V

80
