Demands for slim size, higher power density adaptors are increasingly soaring for notebook computers, DVD players, set-top boxes, and many other household appliances. Won-Top Electronics helps designers meet these demands with our broad portfolio of discrete semiconductors that offer higher switching efficiency at smaller footprint and competitive cost.

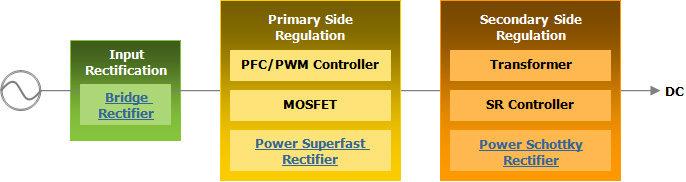

adaptor

Bridge Rectifier, Input Rectification

Part No.

Product Type

Package Group

Package

Configuration

IF(AV)

(A)

VRRM

(V)

VF @ IF

(V)

IR @ VR

(µA)

IFSM

(A)

D2KB60

Bridge Rectifier

Single In-Line

D3K

Bridge

2

600

1.05 @ 1.0A

10 @ 600V

60

DF206

Bridge Rectifier

Dual In-Line

DIL

Bridge

2

600

1.1 @ 2.0A

10 @ 600V

60

DF206S

Bridge Rectifier

SMD

DF-S

Bridge

2

600

1.1 @ 2.0A

10 @ 600V

60

KBP206G

Bridge Rectifier

Single In-Line

KBPM

Bridge

2

600

1.1 @ 2.0A

5.0 @ 600V

60

D2KB100

Bridge Rectifier

Single In-Line

D3K

Bridge

2

1000

1.05 @ 1.0A

10 @ 1000V

60

DF2010

Bridge Rectifier

Dual In-Line

DIL

Bridge

2

1000

1.1 @ 2.0A

10 @ 1000V

60

DF2010S

Bridge Rectifier

SMD

DF-S

Bridge

2

1000

1.1 @ 2.0A

10 @ 1000V

60

KBP2010G

Bridge Rectifier

Single In-Line

KBPM

Bridge

2

1000

1.1 @ 2.0A

5.0 @ 1000V

60

D3KB60

Bridge Rectifier

Single In-Line

D3K

Bridge

3

600

1.05 @ 1.5A

10 @ 600V

90

D3KB100

Bridge Rectifier

Single In-Line

D3K

Bridge

3

1000

1.05 @ 1.5A

10 @ 1000V

90

D4KB60

Bridge Rectifier

Single In-Line

D3K

Bridge

4

600

1.0 @ 2.0A

10 @ 600V

135

GBU4J

Bridge Rectifier

Single In-Line

GBU

Bridge

4

600

1.0 @ 2.0A

5.0 @ 600V

150

GBJ4J

Bridge Rectifier

Single In-Line

KBJ-4

Bridge

4

600

1.05 @ 2.0A

5.0 @ 600V

120

GBL06

Bridge Rectifier

Single In-Line

GBL

Bridge

4

600

1.05 @ 2.0A

5.0 @ 600V

150

D4KB100

Bridge Rectifier

Single In-Line

D3K

Bridge

4

1000

1.0 @ 2.0A

10 @ 1000V

135

GBU4M

Bridge Rectifier

Single In-Line

GBU

Bridge

4

1000

1.0 @ 2.0A

5.0 @ 1000V

150

GBJ4M

Bridge Rectifier

Single In-Line

KBJ-4

Bridge

4

1000

1.05 @ 2.0A

5.0 @ 1000V

120

GBL10

Bridge Rectifier

Single In-Line

GBL

Bridge

4

1000

1.05 @ 2.0A

5.0 @ 1000V

150

Power Superfast Rectifier, Primary Side Regulation

Part No.

Product Type

Package Group

Package

Configuration

IF(AV)

(A)

VRRM

(V)

VF @ IF

(V)

IR @ VR

(µA)

Trr

(ns)

IFSM

(A)

ER1D

Superfast

SMD

SMB

Single

1

200

0.95 @ 1.0A

5.0 @ 200V

35

30

ES1D

Superfast

SMD

SMA

Single

1

200

0.95 @ 1.0A

5.0 @ 200V

35

30

ES1002FL

Superfast

SMD

SOD-123FL

Single

1

200

0.95 @ 1.0A

5.0 @ 200V

35

30

SF14

Superfast

Axial

DO-41

Single

1

200

0.95 @ 1.0A

5.0 @ 200V

35

30

ER2D

Superfast

SMD

SMB

Single

2

200

0.95 @ 2.0A

10 @ 200V

35

50

ER2DA

Superfast

SMD

SMA

Single

2

200

0.95 @ 2.0A

5.0 @ 200V

35

50

SF24

Superfast

Axial

DO-15

Single

2

200

0.95 @ 2.0A

5.0 @ 200V

35

50

Power Schottky Rectifier, Secondary Side Regulation

Part No.

Product Type

Package Group

Package

Configuration

IF(AV)

(A)

VRRM

(V)

VF @ IF

(V)

IR @ VR

(mA)

IFSM

(A)

MBRD5100

Schottky

SMD

DPAK

Single

5

100

0.85 @ 5.0A

0.2 @ 100V

85

S510

Schottky

SMD

SMC

Single

5

100

0.85 @ 5.0A

0.5 @ 100V

125

SR510

Schottky

SMD

SMB

Single

5

100

0.85 @ 5.0A

0.5 @ 100V

125

SB5100

Schottky

Axial

DO-201AD

Single

5

100

0.85 @ 5.0A

0.5 @ 100V

150

SB8100DC

Schottky

SMD

D2PAK

Common Cathode

8

100

0.85 @ 4.0A

0.2 @ 100V

150

SB8100CT

Schottky

Powerpack

TO-220

Common Cathode

8

100

0.85 @ 4.0A

0.2 @ 100V

150

SB8100FCT

Schottky

Powerpack

ITO-220

Common Cathode

8

100

0.85 @ 4.0A

0.2 @ 100V

150

MBRD10100CT

Schottky

SMD

DPAK

Common Cathode

10

100

0.85 @ 5.0A

0.2 @ 100V

100

SB10100DC

Schottky

SMD

D2PAK

Common Cathode

10

100

0.85 @ 5.0A

0.2 @ 100V

150

SB10100CT

Schottky

Powerpack

TO-220

Common Cathode

10

100

0.85 @ 5.0A

0.2 @ 100V

150

SB10100FCT

Schottky

Powerpack

ITO-220

Common Cathode

10

100

0.85 @ 5.0A

0.2 @ 100V

150
