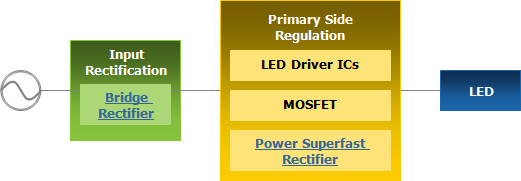

The transition of incandescent light bulb to superior energy-saving LED Lamps is becoming ubiquitous. Designers are constantly facing challenges of simplifying design complexity while increasing energy efficiency at lowest possible cost. Won-Top Electronics delivers a wide range of dedicated discrete components for isolated or non-isolated topologies, dimming or non-dimming features.
Bridge Rectifier, Input Rectification
|
Part No. |
Product Type |
Package Group |
Package |
Configuration |
IF(AV) (A) |
VRRM (V) |
VF @ IF (V) |
IR @ VR (µA) |
IFSM (A) |
|
Bridge Rectifier |
SMD |
MB-S |
Bridge |
0.8 |
600 |
1.0 @ 0.4A |
5.0 @ 600V |
35 |
|
|
Bridge Rectifier |
SMD |
MBL-S |
Bridge |
0.8 |
600 |
1.0 @ 0.4A |
5.0 @ 600V |
35 |
|
|
Bridge Rectifier |
SMD |
MB-S |
Bridge |
0.8 |
1000 |
1.0 @ 0.4A |
5.0 @ 1000V |
35 |
|
|
Bridge Rectifier |
SMD |
MBL-S |
Bridge |
0.8 |
1000 |
1.0 @ 0.4A |
5.0 @ 1000V |
35 |
|
|
Bridge Rectifier |
SMD |
TB-S Flat |
Bridge |
1 |
600 |
1.1 @ 1.0A |
5.0 @ 600V |
30 |
|
|
Bridge Rectifier |
SMD |
DF-S |
Bridge |
1 |
600 |
1.1 @ 1.0A |
5.0 @ 600V |
50 |
|
|
Bridge Rectifier |
SMD |
TB-S |
Bridge |
1 |
600 |
1.1 @ 1.0A |
5.0 @ 600V |
30 |
|
|
Bridge Rectifier |
Dual In-Line |
DIL |
Bridge |
1 |
600 |
1.1 @ 1.0A |
5.0 @ 600V |
50 |
|
|
Bridge Rectifier |
SMD |
TB-S Flat |
Bridge |
1 |
1000 |
1.1 @ 1.0A |
5.0 @ 1000V |
30 |
|
|
Bridge Rectifier |
SMD |
DF-S |
Bridge |
1 |
1000 |
1.1 @ 1.0A |
5.0 @ 1000V |
50 |
|
|
Bridge Rectifier |
SMD |
TB-S |
Bridge |
1 |
1000 |
1.1 @ 1.0A |
5.0 @ 1000V |
30 |
|
|
Bridge Rectifier |
Dual In-Line |
DIL |
Bridge |
1 |
1000 |
1.1 @ 1.0A |
5.0 @ 1000V |
50 |
|
|
Bridge Rectifier |
SMD |
DF-S |
Bridge |
1.5 |
600 |
1.1 @ 1.5A |
5.0 @ 600V |
50 |
|
|
Bridge Rectifier |
Dual In-Line |
DIL |
Bridge |
1.5 |
600 |
1.1 @ 1.5A |
5.0 @ 600V |
50 |
|
|
Bridge Rectifier |
SMD |
DF-S |
Bridge |
1.5 |
1000 |
1.1 @ 1.5A |
5.0 @ 1000V |
50 |
|
|
Bridge Rectifier |
Dual In-Line |
DIL |
Bridge |
1.5 |
1000 |
1.1 @ 1.5A |
5.0 @ 1000V |
50 |
Power Superfast Rectifier, Primary Side Regulation
|
Part No. |
Product Type |
Package Group |
Package |
Configuration |
IF(AV) (A) |
VRRM (V) |
VF @ IF (V) |
IR @ VR (µA) |
Trr (ns) |
IFSM (A) |
|
Superfast |
SMD |
SMA |
Single |
1 |
600 |
1.25 @ 1.0A |
5.0 @ 600V |
50 |
30 |
|
|
Superfast |
SMD |
SMB |
Single |
1 |
600 |
1.25 @ 1.0A |
5.0 @ 600V |
50 |
30 |
|
|
Superfast |
SMD |
SMB |
Single |
1 |
600 |
1.7 @ 1.0A |
5.0 @ 600V |
35 |
30 |
|
|
Superfast |
SMD |
SMA |
Single |
1 |
600 |
1.7 @ 1.0A |
5.0 @ 600V |
35 |
30 |
|
|
Superfast |
SMD |
SOD-123FL |
Single |
1 |
600 |
1.7 @ 1.0A |
5.0 @ 600V |
35 |
30 |
|
|
Superfast |
SMD |
SMB |
Single |
2 |
600 |
1.7 @ 2.0A |
10 @ 600V |
35 |
50 |
|
|
Superfast |
SMD |
SMA |
Single |
2 |
600 |
1.7 @ 2.0A |
5.0 @ 600V |
35 |
50 |
|
|
Superfast |
SMD |
SMC |
Single |
3 |
600 |
1.7 @ 3.0A |
10 @ 600V |
35 |
100 |
